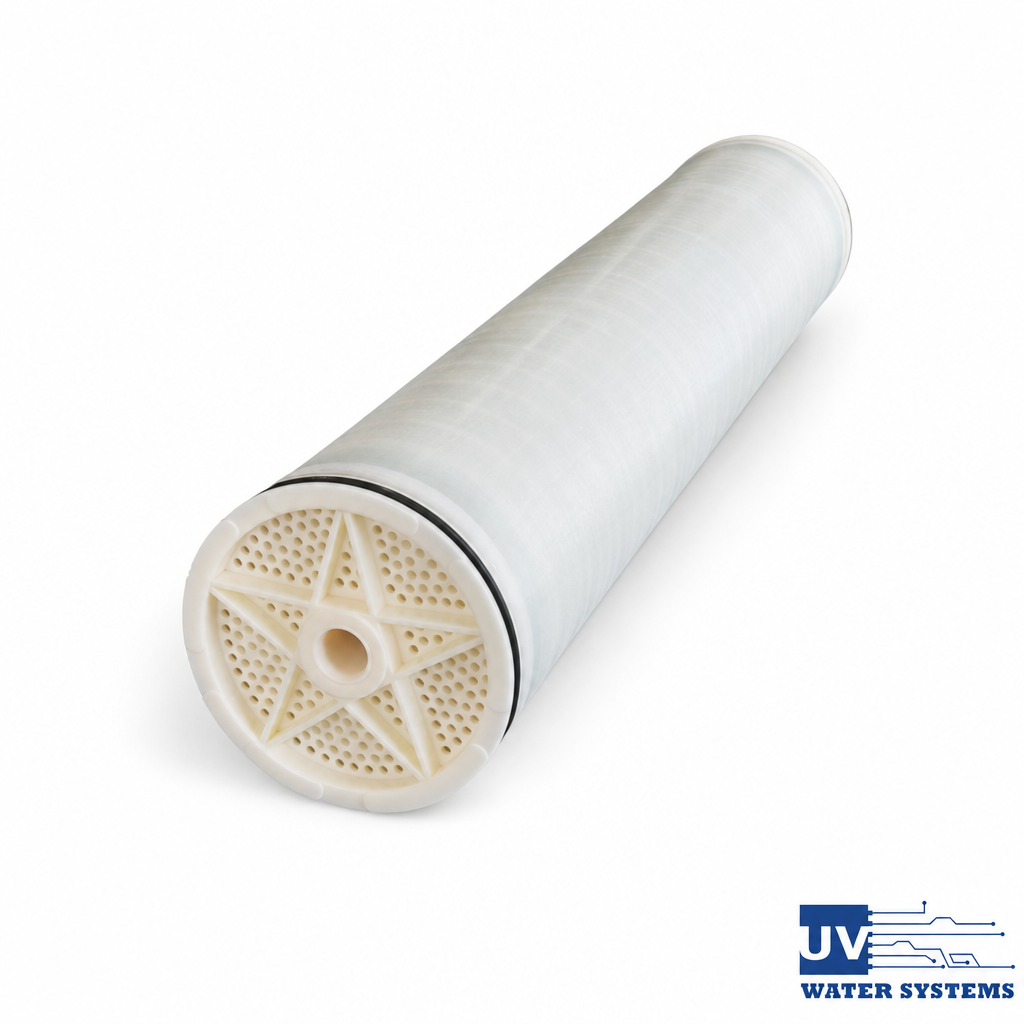

Seawater RO Membrane Oman — Koch Fluid Systems 8040 SWRO Element
A seawater RO membrane Oman project relies on has to survive conditions that destroy ordinary elements: 55–70 bar feed pressure, Gulf of Oman feed water at 38,000–45,000 mg/L TDS, and intake temperatures that climb past 35°C through the summer. The Koch Fluid Systems 8040 SWRO element supplied by UV Water Systems in Muscat is built for that duty. It holds more than 99.5% sodium chloride rejection across the full rated pressure range, and its reinforced construction keeps the element intact under the differential pressures a coastal desalination plant runs every day.
Koch Fluid Systems is one of the original reverse osmosis membrane manufacturers, with a long deployment record on Middle East SWRO projects. UV Water Systems specifies Koch elements as the default seawater RO membrane Oman contractors order for coastal desalination work, particularly where lead times on other brands run long.
Why a Brackish Element Fails in Seawater Service
Brackish water membranes such as the BW30 series are reinforced for 15–25 bar operation. Seawater service is a different problem. A true seawater RO membrane adds reinforcement at the glue lines, the outer wrap, and the permeate collection tube so the element does not telescope or burst at 55–70 bar. Running a brackish element on a seawater feed usually ends in glue line failure within hours, and the debris can damage the pressure vessel and the high pressure pump downstream. The saving on the element is never worth the repair bill.
The second issue is osmotic pressure. At 40,000 mg/L feed TDS the osmotic pressure alone is around 28 bar, so a brackish element operating at its rated 20 bar produces almost no permeate. The membrane chemistry on an SWRO element is tuned for high rejection at high pressure instead of high flux at low pressure.
Seawater RO Membrane Oman Specifications
- Manufacturer: Koch Fluid Systems, USA
- Type: Seawater RO membrane, spiral wound, 8-inch × 40-inch
- Operating pressure: 55–70 bar (800–1,000 psi) rated
- Salt rejection: >99.5% NaCl at seawater test conditions
- Feed TDS range: 35,000–45,000 mg/L
- Maximum temperature: 45°C
- Active membrane area: approximately 37–40 m²
- Pressure vessel: 1,000 psi rated SWRO FRP vessel required
- Feed water SDI: below 5 after pretreatment
- Supply quality: ISO 9001:2015 certified supply chain, UV Water Systems Muscat
Where This Seawater RO Membrane Is Used in Oman
Coastal desalination plants in Muscat, Dhofar, Al Wusta and Al Sharqiyah run on elements of this class. Typical installations for a seawater RO membrane Oman buyers order include resort and hotel water supply on the Barka and Musannah coast, port and offshore facility desalination, fish processing and aquaculture sites, and remote coastal industrial plants with no municipal connection. For inland sites drawing from high TDS boreholes rather than the sea, a brackish element such as the DuPont Filmtec BW30-400 or Toray TM720D-400 is the correct specification.
Getting Full Life From Your Seawater RO Membrane
Membrane life on an Oman SWRO plant is decided by pretreatment, not by the element itself. Keep feed SDI below 5, dose antiscalant continuously, and hold free chlorine at zero at the membrane inlet, since polyamide film oxidises on contact with chlorine. Clean when normalised permeate flow drops 10–15% or differential pressure rises 15% over the commissioning baseline. Handled this way, a Koch seawater RO membrane commonly runs 3–5 years in Oman coastal service. The standard alkaline and acid cleaning sequence published for polyamide elements applies here too.
Buy a Seawater RO Membrane in Oman
UV Water Systems holds strategic stock of SWRO elements for coastal AMC customers in Muscat. New projects and bulk replacement orders typically run 3–6 weeks from the manufacturer. We deliver every seawater RO membrane Oman order to any wilayat in the country, and our technicians handle element loading, pressure vessel inspection, and commissioning with normalised performance data recorded at handover.
Send your feed water analysis, required permeate flow, and existing vessel configuration to sales@waterfilteroman.com or call +968 9763 7786 and we will confirm element count, array design, and price for your seawater RO membrane Oman requirement. UV Water Systems is an ISO 9001:2015 certified water treatment company in Muscat with more than 14 years in the Oman market. See our full RO membrane range or visit www.uvwater.biz.
