Description
The solar panel cleaning water skid from UV Water Systems produces spot-free, deionised wash water on site, so PV modules dry clean without white calcium marks. Built in Muscat for Omani conditions: high-TDS borewell feed, fine desert dust and 45 °C summers.
Every solar panel cleaning water skid is built around the feed water analysis. Send a sample or your lab report and we size the train, then quote the exact configuration.
Why a solar panel cleaning water skid pays for itself
- Recovers real yield. Washing with raw borewell water leaves a calcium haze that blocks light and holds dust. Deionised water dries to nothing.
- Protects the AR coating. No baked-on scale means no aggressive scrubbing and no scratched anti-reflective layer.
- Keeps the module warranty intact. Manufacturers specify cleaning water limits, typically under 100 ppm TDS. This skid delivers under 20 ppm, and under 5 ppm with the DI polisher in line.
- Cuts water hauled to site. Treat what you already have from the borewell instead of trucking in tanker loads.
Solar panel cleaning water skid models
| Model | Output | Configuration | Best for |
|---|---|---|---|
| SWS-500-C | 500 LPH | Softener + compact RO polisher, wall or floor mounted | Rooftop arrays on municipal water, Muscat and Sohar |

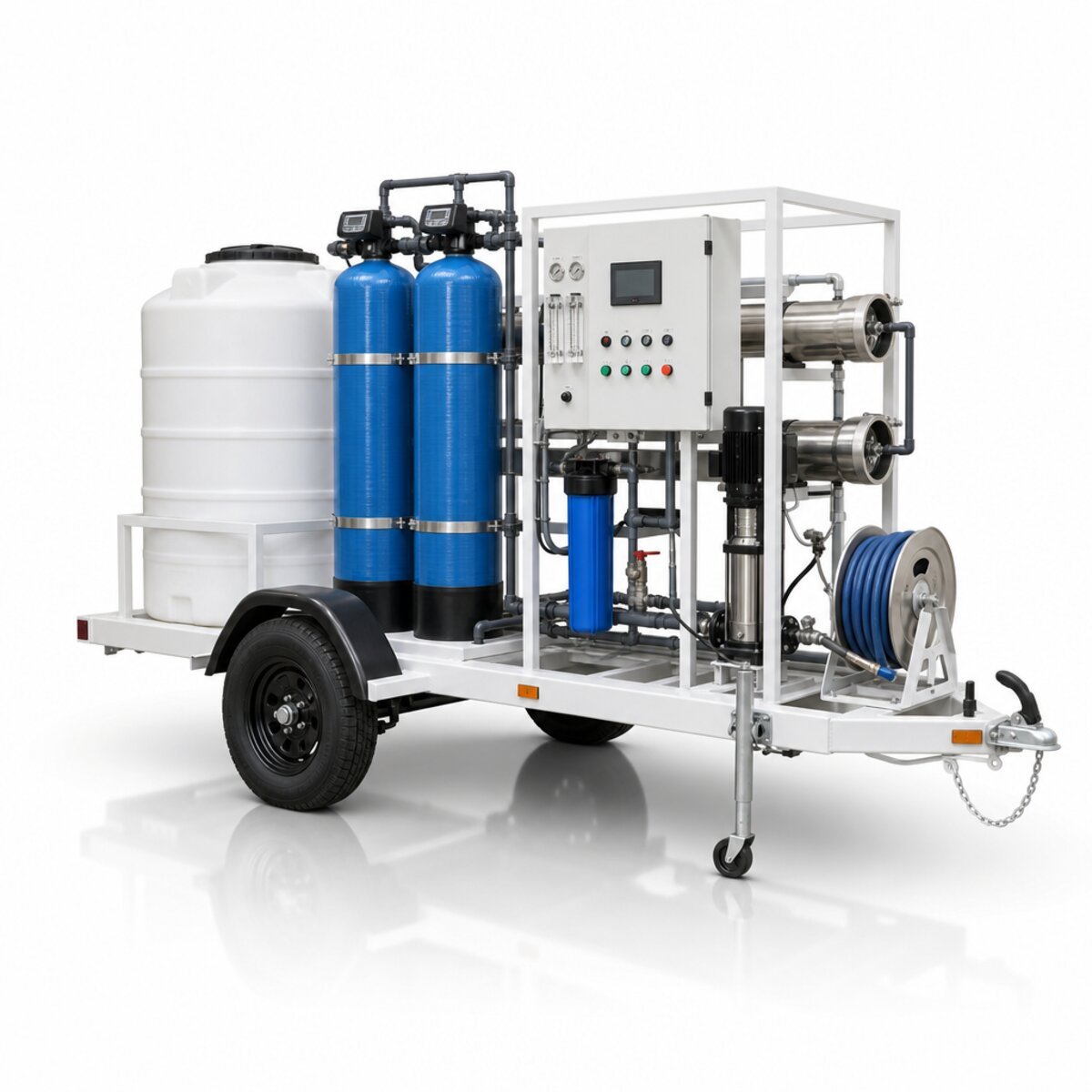

| SWS-1000-T | 1,000 LPH | Trailer-mounted RO + mixed-bed DI, 1,000 L tank, transfer pump | O&M contractors cleaning multiple sites |

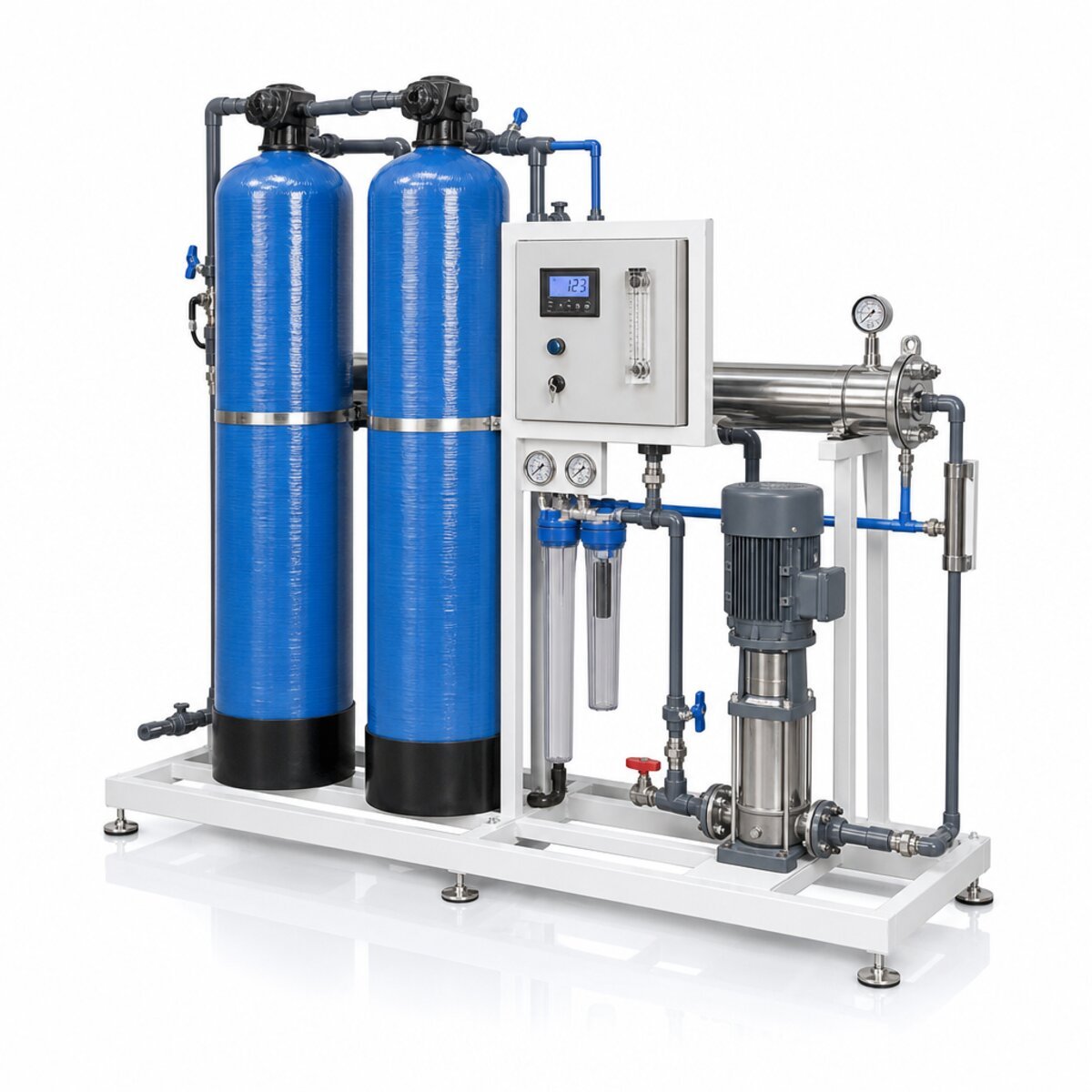

| SWS-2000-F | 2,000 LPH | Fixed skid: MMF, softener, RO, mixed-bed DI | Plant O&M yard with permanent water and power |
| SWS-5000-F | 5,000 LPH | Full fixed train: MMF, softener, antiscalant dosing, RO, DI, storage | Utility-scale plants, 20 MW and above |
Technical specification
| Product water TDS | Below 20 ppm (RO), below 5 ppm with mixed-bed DI |
|---|---|
| Product water hardness | Below 10 ppm as CaCO3 |
| Feed water TDS range | Up to 5,000 ppm standard; higher on request |
| Recovery | 50–65%, feed dependent |
| Membranes | Dupont Filmtec |
| High-pressure pump | Grundfos |
| Dosing | EMEC, Italy |
| Pre-treatment | Multimedia filter plus 5-micron cartridge |
| Frame | Powder-coated MS or SS 304, trailer chassis on mobile models |
| Power | 230 V / 415 V, 50 Hz; generator or PV-fed options |
| Instrumentation | Inline TDS and conductivity meters, pressure gauges, low-pressure cut-out |
| Warranty | 12 months on equipment, excluding consumables |
Scope of supply of the solar panel cleaning water skid
Skid or trailer with all treatment stages piped and wired, control panel, product storage tank as specified, transfer pump, instrumentation, commissioning on site, operator training, and an O&M manual. Optional: spray lance and brush set, hose reel, AMC cover.
Installation and maintenance
Fixed units need a level pad, feed water connection, drain for RO reject and a power supply. Trailer units need a tow vehicle and a feed point. Service intervals: cartridges every 2–3 months in dusty conditions, membrane CIP annually, DI resin exchange as conductivity rises, membrane replacement every 3–5 years.
UV Water Systems covers Oman from Muscat with technicians in Al Khuwair, Ruwi and Al Hail, and offers annual maintenance contracts for solar sites. ISO 9001:2015 certified, 14+ years in water treatment.
How the solar panel cleaning water skid treats the feed
Feed water enters the multimedia filter, where graded silica and anthracite drop turbidity and strip the sand that would otherwise abrade module glass and shred membranes. A 5-micron cartridge follows. The softener then removes calcium and magnesium so the membranes do not scale, and on high-hardness wells an EMEC antiscalant pump supplements it.
Reverse osmosis rejects 96–99% of dissolved salts. A borewell at 1,500 ppm leaves the membranes at 20–50 ppm. The mixed-bed deioniser then polishes that permeate below 5 ppm, which is the point at which water evaporates off hot glass leaving nothing behind. Treated water is stored, then pumped to the wash ring main or the bowser.
Sizing the solar panel cleaning water skid to your plant
Manual brush washing uses 1.5–3 litres per module, vehicle-mounted brushes 0.8–1.5 litres, and robotic systems with DI spray 0.2–0.6 litres. A 5 MW plant of roughly 9,100 modules therefore needs about 9 m³ per full cycle at one litre per module. The 2,000 LPH fixed model covers that in two working days; the 1,000 LPH trailer covers it in four and moves between sites in between.
Allow for the reject stream: at 55% recovery, 9 m³ of product consumes about 16.5 m³ of feed. On borewell-fed sites in Ibri, Adam or Manah, feed availability usually decides the model rather than the wash cycle.
Operating the skid on site
Log product TDS daily; a rising trend is the first sign of membrane trouble. Wash before 9 am or after 4 pm so cold water never hits hot glass. Never add detergent to solar panel cleaning water skid output, since surfactant residue attracts dust and attacks frame sealant. Keep the storage tank sealed. Industry soiling-loss research, including work published by NREL, shows cleaning frequency matters as much as cleaning method in arid climates.
Related reading
See our full guide to solar panel cleaning water in Oman, and the background on industrial water treatment in Oman.
Request a solar panel cleaning water skid quote
Price on application, configured against your feed water. Call +968 9763 7786 or email sales@waterfilteroman.com with your site location, plant size and a water analysis if you have one.
وحدة إنتاج مياه تنظيف الألواح الشمسية
وحدة متكاملة من يو في ووتر سيستمز تنتج مياهًا منزوعة الأيونات في الموقع لغسيل الألواح الشمسية دون ترك بقع أو ترسبات كالسيوم. مصممة لظروف عمان: مياه آبار عالية الملوحة وغبار صحراوي وحرارة تتجاوز ٤٥ درجة مئوية.
تتوفر بأربع سعات: ٥٠٠ لتر/ساعة مدمجة للأسطح، و١٠٠٠ لتر/ساعة على مقطورة متنقلة، و٢٠٠٠ و٥٠٠٠ لتر/ساعة كوحدات ثابتة. تشمل الترشيح الأولي والتنعيم والتناضح العكسي بأغشية Dupont Filmtec ومضخات Grundfos وعمود إزالة الأيونات، مع ملوحة إنتاج أقل من ٥ أجزاء في المليون.
السعر حسب تحليل مياه التغذية. للاستفسار: +968 9763 7786 أو sales@waterfilteroman.com.
