Chlorine Dosing Plant (Sodium Hypochlorite)

Description

Chlorine Dosing Plant Oman: Sodium Hypochlorite Dosing Systems

A chlorine dosing plant Oman water networks can depend on does one job well: it injects a measured, repeatable dose of sodium hypochlorite into the flow so that a safe chlorine residual reaches every tap. UV Water Systems designs, supplies and installs complete sodium hypochlorite dosing skids from our base in Muscat, for municipal supply, storage tank disinfection, pre-chlorination ahead of media filters, and industrial process water across the Sultanate of Oman. See our full range of dosing systems and water treatment equipment.

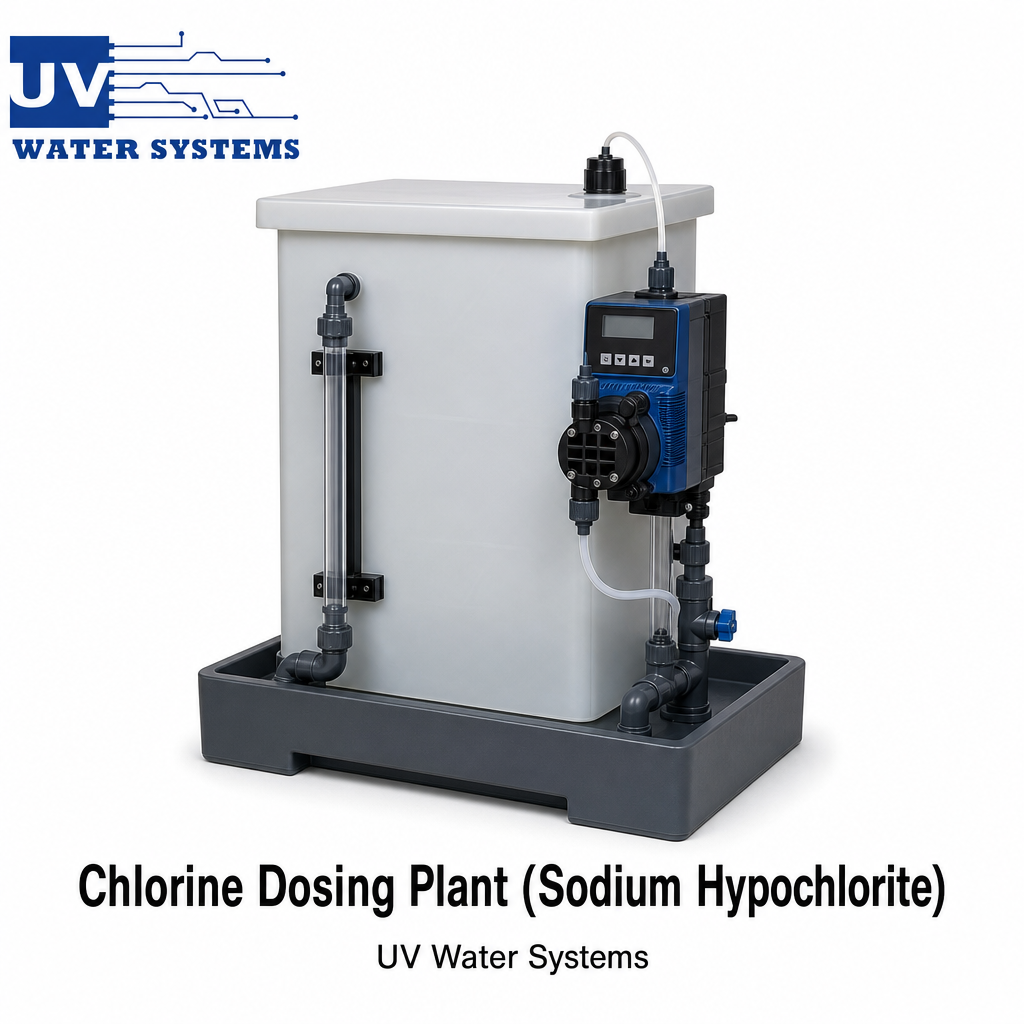

Every chlorine dosing plant Oman installation is built around a chemically compatible dosing pump, a UV-stabilised HDPE solution tank, secondary containment and a PVDF injection quill, then commissioned on site with a verified residual reading before handover.

Why Chlorine Dosing Matters for Oman Water Quality

Sodium hypochlorite (NaOCl, liquid bleach) at 10 to 15% active chlorine is the most widely used disinfectant in Oman’s water sector. It is far safer to handle than chlorine gas, it costs less per kilogram of available chlorine than tablet or granular alternatives, and it works reliably at the contact times used in local storage and distribution systems.

Two conditions make dosing control critical here.

Ambient temperatures above 40°C accelerate chlorine decay, so a residual that measures 0.8 mg/L at the tank can fall below 0.2 mg/L by the time water reaches the far end of a network. And instantaneous demand in villa compounds, hotels and labour accommodation can swing 10:1 between peak and off-peak hours.

A fixed-rate pump either overdoses at night or underdoses at peak.

Flow-proportional control solves this by taking a pulse signal from the flow meter, so the dose rate tracks actual flow and the concentration stays constant. For details on residual targets, the WHO drinking-water quality guidelines remain the standard reference.

Chlorine Dosing Plant Oman: Technical Specifications

Standard build specification for a chlorine dosing plant Oman customers order from UV Water Systems:

• Chemical: Sodium hypochlorite (NaOCl), 10 to 15% active chlorine
• Dosing pump: Emec Italy or Seko, PVDF wetted parts (NaOCl resistant)
• Output range: 2 to 40 L/h, model dependent, up to 10 bar back pressure
• Control mode: Manual, flow-proportional (flow meter pulse), or 4 to 20 mA from an ORP / free chlorine sensor
• Solution tank: HDPE 100 to 500 litre, UV-stabilised lid, low-level float alarm
• Injection: PVDF injection quill with integral back-pressure and non-return valve
• Safety: Secondary containment drip tray, gas-tight fittings, calibration column
• Monitoring: Optional online free chlorine or ORP analyser with alarm relay
• Power: 220V / 50Hz, Oman standard
• Quality: ISO 9001:2015 certified supply chain, UV Water Systems, Muscat

How to Size a Chlorine Dosing Plant

Sizing comes down to one calculation. Multiply your peak flow in m³/h by the target dose in mg/L, then divide by the strength of the hypochlorite solution in g/L. A 20 m³/h supply dosed at 2 mg/L using 12% NaOCl (roughly 120 g/L available chlorine) needs about 0.33 L/h of neat solution, so a 5 L/h pump gives comfortable turndown and headroom for shock dosing.

Add 20 to 30% capacity if the source is groundwater with an organic or ammonia load, because chlorine demand rises before any residual is established.

Tank volume should hold at least 7 to 14 days of consumption. Sizing a tank much larger is counterproductive, since hypochlorite loses 2 to 5% of its strength per month in Oman’s heat and degrades faster in direct sunlight.

Applications in Muscat and Across Oman

A chlorine dosing plant Oman sites most often need covers the following duties:

Municipal and community water supply disinfection. Residual maintenance in GRP, HDPE and concrete storage tanks. Pre-chlorination ahead of multimedia filters for iron and manganese oxidation.

Shock disinfection of tanks, pipelines and building risers after maintenance.

Swimming pool and water feature disinfection. Cooling tower biological control. Labour accommodation, school, hospital, hotel and food processing water systems.

Well water treatment in Barka, Nizwa, Sohar, Salalah and the interior.

Installation, Commissioning and Service

We do not sell a chlorine dosing plant Oman customers then have to commission themselves. Our technicians install the skid, wire the flow meter or sensor signal, set the stroke and frequency, then verify the free chlorine residual with a DPD test at the point of use before signing off.

Every chlorine dosing plant Oman customers buy from us comes with a commissioning report, an operator handover, and an annual maintenance contract option covering pump diaphragm and valve service, sensor calibration and hypochlorite resupply.

Related equipment includes our chemical dosing systems and dosing pumps.

Frequently Asked Questions

What chlorine residual should I maintain in Oman?
Typical targets run 0.5 to 2.0 mg/L free chlorine for treated water at the point of use, and 5 to 10 mg/L for shock disinfection of storage tanks. Aim for the upper end of the normal range at the dosing point when the distribution run is long or the water is warm.

How much does a chlorine dosing plant Oman installation cost?
Price depends on pump output, control mode, tank size and whether online chlorine monitoring is included. Send us your peak flow, source water analysis and target residual, and we will quote a specified system within 24 hours.

Does UV Water Systems supply sodium hypochlorite solution?
Yes. We supply NaOCl in 25 kg jerrycans and 200 litre drums from Muscat, with delivery to all governorates in Oman.

How often does the dosing pump need servicing?
Inspect the diaphragm, injection quill and foot valve every six months. Hypochlorite off-gasses and can vapour-lock a pump head, so a degassing valve or self-priming head is worth specifying on low-flow systems.

Do you deliver and install across Oman?
Yes. We cover all of Muscat governorate directly and ship equipment and spares to every wilayat in the country.

Order Your Chlorine Dosing Plant Oman Project Needs

UV Water Systems is an ISO 9001:2015 certified water treatment company based in Muscat, Sultanate of Oman, with more than 14 years in the industry. We supply, install and service complete water treatment solutions for residential, commercial and industrial clients nationwide. Call +968 9763 7786, email sales@waterfilteroman.com, or visit www.uvwater.biz for a free consultation and a specified quotation for your chlorine dosing plant Oman requirement.
