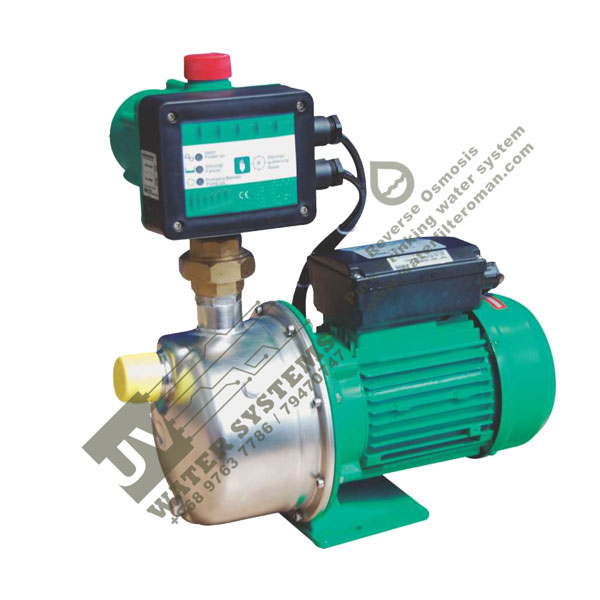

Model: UV WP D
Flow: upto 80 LPM
Head: upto 46 m
Voltage: 1 ~ 230 V, 50 Hz.
Water transfer in - Bungalows / farm houses / apartments / hostels
Stainless steel pump body, stainless steel impeller, available with electronic control for automatic operation, high efficient motor suitable for wide voltage fluctuations, anti-rust material, component parts insensitive to corrosion, easy to carry, install and operate.

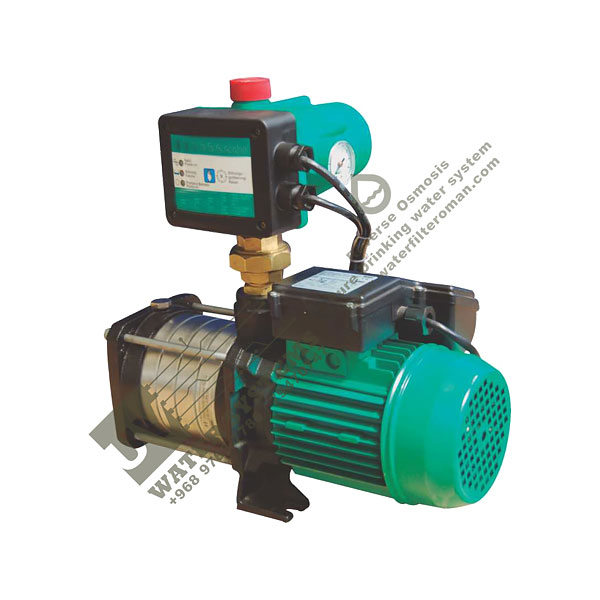

MOdel: UV WP HM
Flow: upto 215 LPM
Head: upto 62 m
Voltage: 1 ~ 230 V, 50 Hz.
Stainless steel impeller, wetted parts made up of stainless steel, available with hydro pneumatic tank / electronic control for automatic operation, high efficient motor suitable for wide voltage fluctuations, silent in operation and easy to carry, install and operate

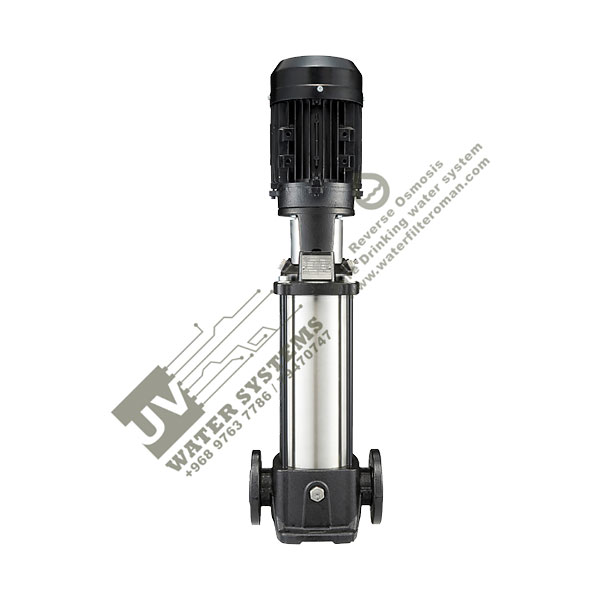

Model: UV WP VM
Flow: upto 1000 LPM
Head: upto 200 m
Voltage: 400 V, 50 Hz.
Reverse osmosis Plant, HVAC, Boiler Feed, Effluent Treatment
Rotech supplies robust vertical multistage pumps that are designed to occupy minimum space with less power consumption. Each vertical multistage pump is equipped with superior quality heavy duty upper & lower casing. For smooth working under stringent conditions, these centrifugal pumps boost high quality shaft and impeller. Like vertical inline pumps and end suction pumps, vertical multistage pumps also come with ANSI flange connections.

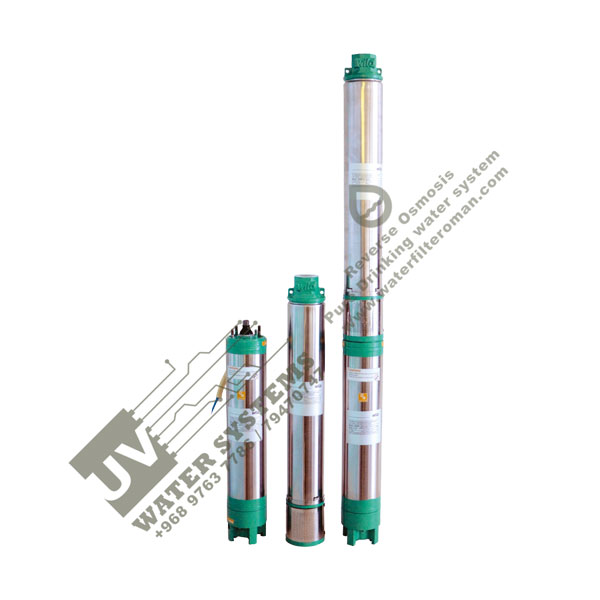

Model: UV WP S01
Flow: upto 500 LPM
Head: upto 1142 ft
Power: upto 5 HP
Domestic household water supply / water supply to high rise building / housing complex / villas / farm houses / gardens and nurseries / washing - garages / poultry farms , cattle farms and stud farms / fountains
Discharge upto to 500 LPM, head upto 348 mts (1142 ft), pump form 0.37 kW (0.5 HP) upto 3.7 kW (5 HP), wide voltage range available in single phase and three phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure realibility & capability to withstand with voltage fluctuation, adequate bearing supports are provided at top, bottom and middle for better stability, casing are provided with wear ring (SS) for longer life and ease in maintenance, top & suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cables along with earthing provision and resistant to corrosion and abrasion

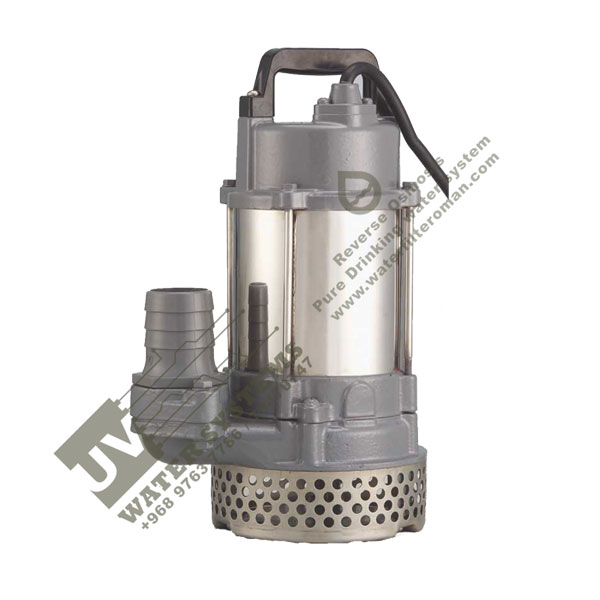

Model: UV WP DEW
Flow: upto 1500 LPM
Head: upto 32 m
Solid passage: upto 35 mm
Sewage disposal from residential buildings / commercial buildings / industry / small hospitals
Attached float switch (A-model) enables easy operation, robust pump with high efficiency, dry motor construction with sealing chamber, stainless steel motor body with IP 68 protection, AC thermal motor protection, integrated motor control for current overload and high temperature and Easy to carry and handle

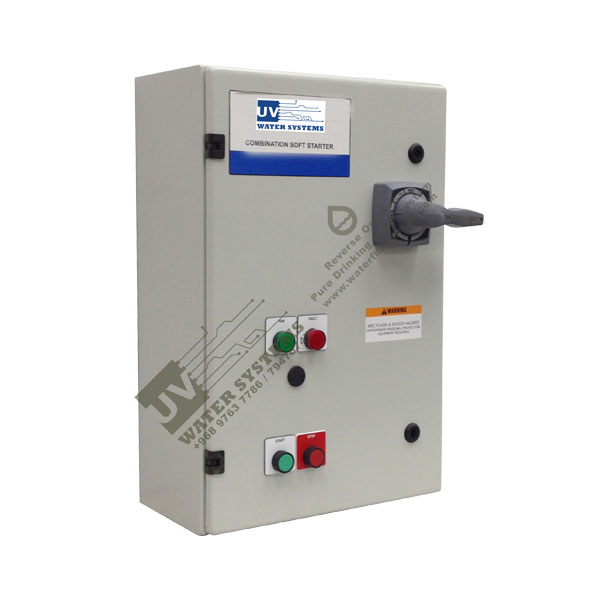

Model: UV PNL01
Design & installation of electrical Panels for different applications.
Panels for Pump control, Blower Control, RO Plant etc

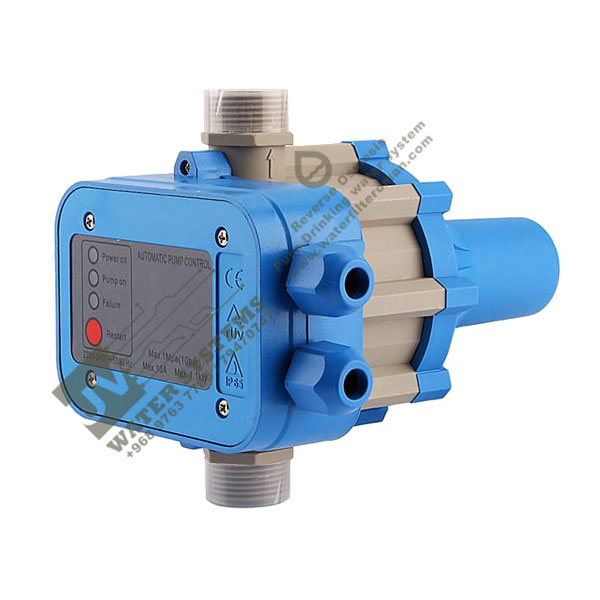

Model: UV PPC
Voltage 220-240 V
Max. Current: 10A
Frequency 50/60Hz
Protection Grade: IP65
Max. Water Temperature: 60oC
Stating Pressure: 1.5 Bar
Max. Pressure: 10 Bar

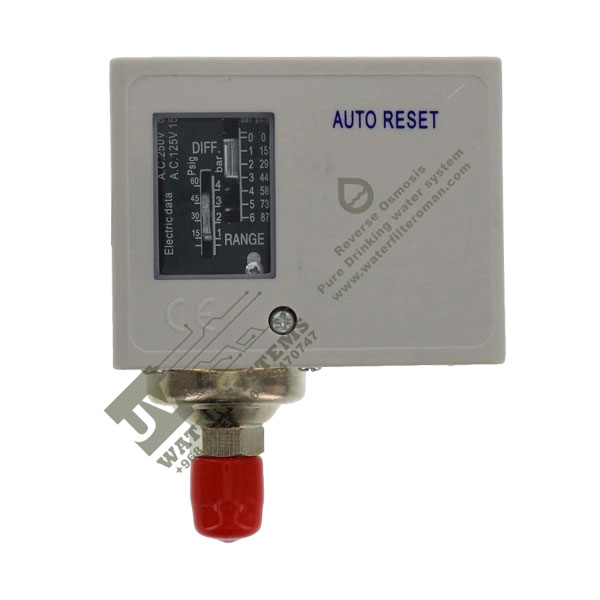

Model: UV PPS
Pressure Switch with AC Relay for different range

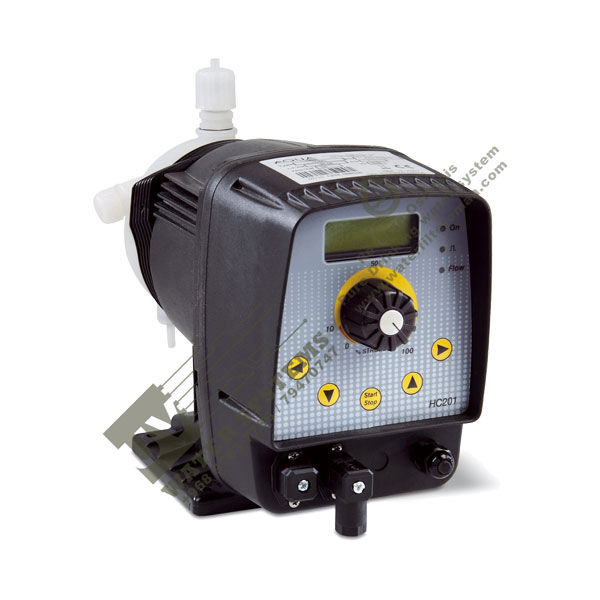

Model: UV PDP
Metering pumps with a rugged, totally enclosed, chemically resistant housing for protection in the harshest environments. Encapsulated electronics and a rigid housing and stroke bracket ensure years of precise, repeatable performance. Several control options are available for all applications and budgets.
