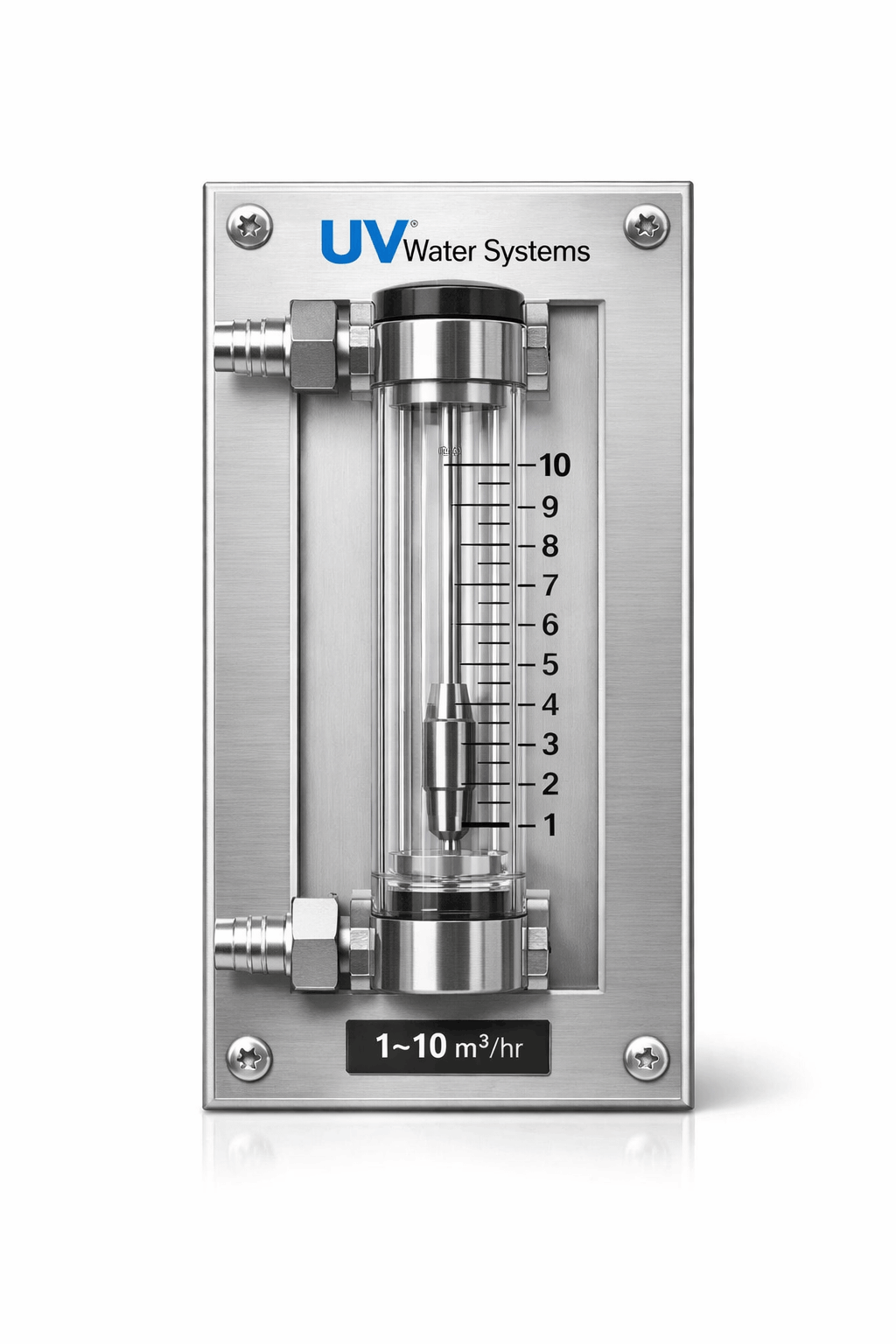

Panel Mount Inline Flow Meter Oman Muscat
Commercial and industrial water treatment systems in Oman require more than visual flow indication — they require accurate, recordable flow data for water consumption billing, treatment chemical dosing proportioning, RO system performance calculation, and regulatory reporting. The panel mount inline flow meter Oman Muscat, in the 1–10 m³/hour range supplied by UV Water Systems in Muscat provides accurate volumetric flow rate measurement with pulse output for totalisation (total volume consumed over time) and 4–20 mA analogue output for integration with chemical dosing pump controllers, PLCs, and SCADA systems at commercial and industrial water treatment facilities across Oman. At 1–10 m³/hour, this instrument covers the flow range of commercial RO plants (3,000–10,000 LPH permeate flow), softener service flow measurement, UV sterilizer flow verification for dose calculation, and process water allocation metering at industrial facilities.
Flow Meter Technology and Selection for Oman Applications
In the 1–10 m³/hour flow range for water treatment, two technologies are commonly used: electromagnetic (magmeter) and vortex flowmeters. Electromagnetic flowmeters operate on Faraday’s law — a magnetic field applied across the flow tube induces a voltage in the flowing water proportional to velocity, which is converted to volumetric flow rate by the meter electronics. Magmeters have no moving parts, do not create pressure drop, and handle turbid water, suspended solids, and chemically aggressive streams without fouling or calibration drift. Vortex meters detect vortices shed by a bluff body in the flow — accurate and reliable for clean liquids with stable flow profiles.
Key Features and Benefits of Panel Mount Inline Flow Meter Oman Muscat
- 1–10 m³/hour commercial flow range: Covers the operational flow rates of commercial RO plants (500–5,000 LPH feed flow), commercial softeners, UV sterilizer systems, and cooling tower makeup water systems — the full commercial water treatment equipment range UV Water Systems installs in Oman.
- Pulse output for volume totalisation: Pulse output at a factory-set pulse value (e.g., 1 pulse/litre or 10 pulses/litre) connects to totaliser displays, chemical dosing pump controllers (flow-proportional dosing), and PLCs for accurate daily/monthly water consumption recording — essential for billing and regulatory reporting in Oman.
- 4–20 mA analogue output for SCADA/PLC integration: Standard 4–20 mA output connects to any process control system — enables flow rate alarming (high/low flow indicating pump fault or system bypass), flow ratio calculation (RO recovery), and trend logging for industrial water system performance records.
- Panel mount display with local readout: Backlit LCD or LED display shows instantaneous flow rate and totalised volume
- Suitable for inline installation in 3/4-inch to 2-inch pipe: Available in standard pipe sizes covering the line diameters used in commercial water treatment in Oman
Technical Specifications of Panel Mount Inline Flow Meter Oman Muscat
- Flow range: 1–10 m³/hour
- Output: 4–20 mA + pulse
- Accuracy: ±1–2% full scale
- Pipe size: 3/4-inch to 2-inch (model dependent)
- Power supply: 220V AC or 24V DC
- Display: Panel-mounted LCD with backlight
Applications Across Oman
Panel mount inline flow meters from UV Water Systems are installed in commercial RO plant feed and permeate lines, UV sterilizer installations requiring dose verification, softener service flow measurement, chemical dosing proportioning systems, and cooling tower makeup water metering across Muscat. UV Water Systems installs, programs, and commissions inline flow meters as part of complete commercial and industrial water treatment systems in Oman.
Frequently Asked Questions
Can the flow meter be used for chemical dosing proportioning in an antiscalant system? Yes — the pulse output from the flow meter connects directly to the external control input of a proportional chemical dosing pump (Emec, Grundfos, or equivalent). The dosing pump delivers a fixed volume of antiscalant chemical per pulse from the flow meter, automatically adjusting chemical dose rate in proportion to actual RO feed flow — preventing over-dosing during low-demand periods and under-dosing at peak demand. UV Water Systems designs and installs antiscalant dosing systems with flow-proportional control for all commercial RO plants in Oman.
Does UV Water Systems provide flow meter installation and calibration services? Yes — UV Water Systems installs, calibrates, and programs inline flow meters for all commercial and industrial water treatment applications in Muscat. Calibration certificates are issued for meters used in water billing and regulatory compliance applications. Contact +968 9763 7786 for a flow metering consultation.
